Yangzhou Jade Workshop / Atelier Xuk

© Lv Hengzhong

Architects: Atelier Xuk
Location: Wantou Land Resources Institute, 783 Qin You Lu, Guangling Qu, Yangzhou Shi, Jiangsu Sheng, China, 225006
Area: 6500.0 ft2
Photographs: Lv Hengzhong

Project Team: Liukenan Zhangxu, Lujun Zengyahan, Chenruizhi Dongxiao

© Lv Hengzhong

From the architect. Location of the project: Wantou village of Yangzhou, has been famous for its tradition of Jade carving. Local government planned to turn Wantou to a sightseeing spot featuring fabrication and trade of jade-handicrafts. The project sits at the entrance of the old village, previous occupation was a 4-story high elementary school. With quite limited budget our client want it to be renovated into a mix-use with an open workshop and exhibition, commercial space.

© Lv Hengzhong

Although the existing school building is not really strong in terms of both aesthetics and construction quality, its straight-forward functionalism, its authenticity and its unique 80`s features have touched us deeply and made us be in great favor of it. We hope through our design, these identities will be well kept after the implantation of new program.

Ground Floor Plan

In terms of the general planning, we transform the school sport-yard into an entrance square, which is defined by the factory, a 2-stroy high dormitory building to the south, and a newly introduced corridor for connection of the 2 buildings. Structure of the corridor is of the same module as the facade of the factory and could be regarded as the extension of the factory for space enclosure.

© Lv Hengzhong

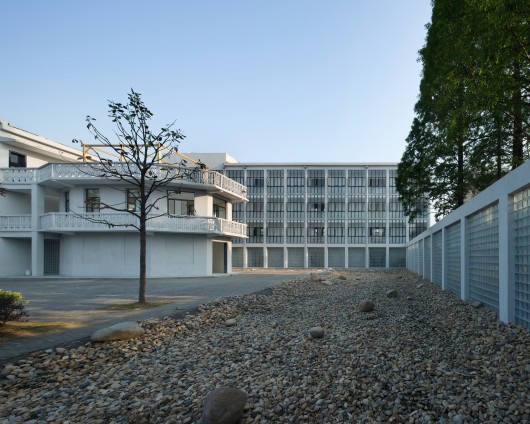

On the square we introduce a stone pool, a scenery similar to natural riverbank where best raw-material of jade is collected. This scene will bring visitors back to the long tradition of jade mining and fabrication. All the rain water from the site is collected to this pool, in no time there will be green.

© Lv Hengzhong

In terms of the program, we introduced exhibition and commercial space at the ground level, and open workshop from level2 to level4. Canteen and living units are located in the brick building to the south of the entrance square, together with reception program.

© Lv Hengzhong

We re-directed the circulation. The previous auditorium of the school, which is located right at the center of the site, are renovated as the entrance hall to the workshop. Visitors will be directed to the hall, and the exhibition space, and guided to workshop space on the 2nd floor. They will leave the building through the exit on the north facade of the factory.

© Lv Hengzhong

Along the south facade there were exterior corridors featuring pre-fabricated cement handrails, which is also used on neighboring residential buildings. Pre-fabricated cement handrails are massively used on many building typologies from the 60s to the 80s in China as the replacement of steel handrails due to lack of social productivity. For us, it authentically carries the identity of that specific period and has become a heritage itself.

© Lv Hengzhong

We tried to not only keep the cement handrail as a functional element of the facade, but to create a hierarchy, a certain order in terms of architectural language that can furthermore stress the ornamental value of the cement handrails for visitors to experience. By introduction of a layer of semi-transparent glass to the front of the handrails, we actually cut the cement handrails from the concrete structure framework and applied an expression of lightness to it. The volume of the handrail is dissolved and the 2-dimensional ” graphical” effect is emphasized. this “lightness” forms an very interesting contrast to the “heaviness” of the exposed concrete structure framework. Introduction of the glass facade alienates the cement handrail, projection of the handrail on the glass composed the facade of the building together with the concrete framework.

Section 2
Section 3

At the entrance level, we introduced a more human scale with curved glass-brick walls, which gives the whole south facade a thicker shadow at the bottom and a more homogenous lighting condition for the interior space. We used two kinds of glass bricks, one is clear while the other is semi-transparent. The glass bricks are arranged in the way that view from inside of the building is confined, so that only the stone pool ( instead of the yard ) is revealed from inside. Jade stones which are exhibited are again related to the raw stones that are scattered in the stone pool when people experience the space.

© Lv Hengzhong

On the north facade, we used GRP (Glass Reinforced Plastic) grid frame as an additional layer to the existing facade. This layer not only provided enough view protection to the heat exchangers of air-conditionings, but en-gifted the facade with a bigger scale and also a stronger gesture to the street in front of it. GRP material are by nature greenish and translucent like jade, an emblem of the program which the building contains.

© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong

Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong

Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong

Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong

Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong

Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong

Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong

Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong

Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong

Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk © Lv Hengzhong
© Lv Hengzhong
Yangzhou Jade Workshop / Atelier Xuk Site Plan 1
Site Plan 1

Yangzhou Jade Workshop / Atelier Xuk Site Plan 2
Site Plan 2
Yangzhou Jade Workshop / Atelier Xuk Ground Floor Plan
Ground Floor Plan
Yangzhou Jade Workshop / Atelier Xuk Second Floor Plan
Second Floor Plan

Yangzhou Jade Workshop / Atelier Xuk Third Floor Plan
Third Floor Plan
Yangzhou Jade Workshop / Atelier Xuk Fourth Floor Plan
Fourth Floor Plan
Yangzhou Jade Workshop / Atelier Xuk Section 1
Section 1

Yangzhou Jade Workshop / Atelier Xuk Section 2
Section 2
Yangzhou Jade Workshop / Atelier Xuk Section 3
Section 3
Yangzhou Jade Workshop / Atelier Xuk Detail 1
Detail 1

Yangzhou Jade Workshop / Atelier Xuk Detail 2
Detail 2
Yangzhou Jade Workshop / Atelier Xuk Detail 3
Detail 3
Yangzhou Jade Workshop / Atelier Xuk Detail 4
Detail 4

Yangzhou Jade Workshop / Atelier Xuk Detail 5
Detail 5
Yangzhou Jade Workshop / Atelier Xuk Detail 6
Detail 6
Yangzhou Jade Workshop / Atelier Xuk Detail 7
Detail 7

Yangzhou Jade Workshop / Atelier Xuk Detail 8
Detail 8

* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "Yangzhou Jade Workshop / Atelier Xuk" 23 Dec 2014. ArchDaily. Accessed 24 Dec 2014. <http://www.archdaily.com/?p=578575>
