Casa Avenal / Carlos Castanheira

© Fernando Guerra | FG+SG

Architects: Carlos Castanheira
Location: Avenal, 3720, Portugal
Architect In Charge: Carlos Castanheira & Clara Bastai, Arqtos Lda
Design Team: Hellen van het hart, Sofia Reis, Duarte Rodrigues, Demis Lopes, Luís Calheiros
Year: 2004
Photographs: Fernando Guerra | FG+SG

Specialities: Armandina Rodrigues, Engª Civil
Contractor: Administração Directa “A Construtora do Loureiro”, Lda. (Empreiteiro Geral)
Client: Manuela e Manuel Coelho

© Fernando Guerra | FG+SG

From the architect. Having previously started work on a different project in a smaller location, I abandoned my first idea for these clients, so as to initiate this project in a larger plot of land, thereby delivering the possibility of building a single storey house.

Although the programme remained the same, the setting created the physical and spatial possibility of increasing the respective areas of the intended spaces and trying out a different type of construction – wooden construction.

Site Plan

The dense covering of eucalyptus trees was completely removed from the plot of land, thus revealing the gentle elevation of the land and its views to the southeast.

The programme originated a dwelling with a large covered area, which might otherwise have been difficult to control in a single storey.

© Fernando Guerra | FG+SG

In order to reduce the physical and perceptual differences inherent to the single storey solution, I decided to organise the house in a regular arc, wherein all walls would ran parallel with one another – the longitudinal walls and the transversal walls that converged in the centre of the longitudinal walls.

Access to the house is achieved from the back, to the north – where the covered car-parking area and technical areas are also located.

Floor Plan

Nestled against the terrain, the single housing volume is actually constituted by various volumes unified by the roof covering.

The volume to the east contains three bedrooms and the respective bathroom and toilet facilities.

© Fernando Guerra | FG+SG

The social spaces are located in the centre, in a direct relationship with the garage and access area, specifically including the entrance hall, office, kitchen, lounge and dining room.

The volume to the west – the first part of the building we see upon arriving – contains the indoor swimming pool, changing room and a family party room.

© Fernando Guerra | FG+SG

The Riga-wood structure is perched upon a concrete slab flooring and several peripheral masonry walls.

The interior walls are made of plasterboard. The wood-lined ceilings include an exposed wooden structure, complemented by wooden window and door frames. The floor paving is constituted entirely of slate.

Sketch

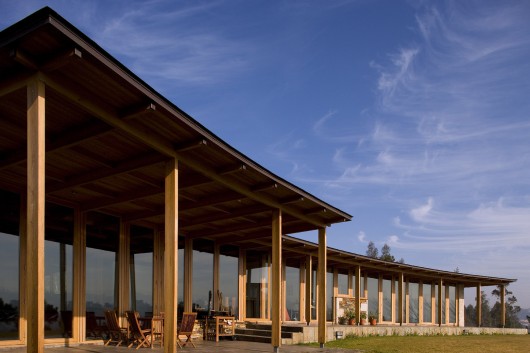

The exterior is constituted by slate walls, and the ashlar masonry work and wall-corners are reinforced with granite. The front of the building, looking South, is constituted entirely of wood and glass. Solar protection is ensured by means of roof covering balances supported on wooden pillars.

© Fernando Guerra | FG+SG

The roof covering is almost completely flat and waterproofed by means of copper plating.

Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG

Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG

Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG

Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG

Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG

Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG

Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira © Fernando Guerra | FG+SG
© Fernando Guerra | FG+SG
Casa Avenal / Carlos Castanheira Sketch
Sketch

Casa Avenal / Carlos Castanheira Sketch
Sketch
Casa Avenal / Carlos Castanheira Sketch
Sketch
Casa Avenal / Carlos Castanheira Sketch
Sketch

Casa Avenal / Carlos Castanheira Sketch
Sketch
Casa Avenal / Carlos Castanheira Sketch
Sketch
Casa Avenal / Carlos Castanheira Sketch
Sketch

Casa Avenal / Carlos Castanheira Model
Model
Casa Avenal / Carlos Castanheira 3D Model
3D Model
Casa Avenal / Carlos Castanheira Site Plan
Site Plan

Casa Avenal / Carlos Castanheira Floor Plan
Floor Plan
Casa Avenal / Carlos Castanheira Elevation
Elevation
Casa Avenal / Carlos Castanheira Elevation
Elevation

Casa Avenal / Carlos Castanheira Section
Section

Cite: "Casa Avenal / Carlos Castanheira" 01 Sep 2014. ArchDaily. Accessed 10 Dec 2014. <http://www.archdaily.com/?p=542000>
