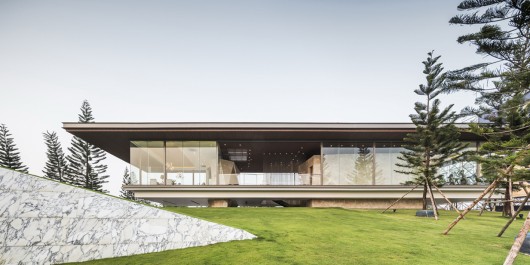

The Grand Pinklao Clubhouse

© W-Workspace

Architects: Office AT
Location: Bangkok, Thailand
Project Architects: Surachai Akekapobyotin, Juthathip Techachumreon
Architect Team: Pinyo Tanadirek, Noppon Jeidipang
Interior Designer: Office AT
Area: 1,000 sqm
Year: 2013
Photographs: W-Workspace

Landscape Designer: Landscape Architects of Bangkok
Structural Engineer: Mr. Sarawut Yuanteng
System Engineer: Mr. Petch Panyagham
Contractor: archani co.ltd.
Owner: Krungthep Land Public Company Limited
Construction Cost: 40 Million Baht

© W-Workspace

From the architect. Concept

Luxury housing project in Bangkok city is now expands to outer of the city. The Grand pinklao project which is one of the upper class leading real estate in Thailand is located in Borommaratchonnani Rd.which is the main road to the west of Thailand. The project needs the prominent clubhouse in front of the master plan for gateway and easily seen from the main road.

Second Floor Plan

Program

The building program includes multi propose and office on the first floor Sale office, fitness swimming pool and facility on the 2nd floor.

© W-Workspace

Slope & Height

From requirement of the owner for the new building, it should be unique and easily seen from main road so the building is sit on the top of 2 metre height landscape and the building height is extend to the 12 meter level which is the height limit by regulation.

© W-Workspace

Twist

The main program of the building such as sale office, fitness etc is twist along the main road to clearly seen from main road. The other part of the building such as swimming pool and mechanic is place along north and south direction so both parts form an L shape plan.

Diagram

Sun orientation

The building axis also matches with the suitable orientation in Southeast Asia. The narrow face of the building face the sun on east and west side, especially on the west, there is a long shading over 4.5 meter to protect the building from sun light and increase energy saving performance.

© W-Workspace

Parking & Pedestrian

From the building layout, the building is faced on both main road and the housing project inside of the master plan. The entrance to the building from parking and pedestrian leading by landscape are come from inside of the project.

© W-Workspace

Structure

In order to make building as gateway to the housing project. The building use post tension structure to make a balance structure by cantilever both front and back of the building for 7.5 meter.

© W-Workspace

Glass box on the stone

The 2nd floor exterior skins of the building are clear glass in order to clearly see space and activities inside. The functions that need privacy in the building such as toilet, meeting room are covered with irregular brick wall and clad with stone to make them look like natural stone shapes so the resulting shape of the building is a glass box on top of stones.

Exploded Axonometric

Explode diagram

The building are composed of 3 types of structure. Post & Beam structure is used for support ground floor plate and swimming pool. The 2nd floor use post tension structure since it need unusual structure for long cantilever and the main column are stop at the 2nd floor plate. From 2nd floor to the roof of the building, steel structure is used to make the 2nd floor glass box float.

The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace

The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace

The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace

The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace

The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace

The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace

The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace

The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT © W-Workspace
© W-Workspace
The Grand Pinklao Clubhouse / Office AT Concept
Concept

The Grand Pinklao Clubhouse / Office AT Layout
Layout
The Grand Pinklao Clubhouse / Office AT First Floor Plan
First Floor Plan
The Grand Pinklao Clubhouse / Office AT Second Floor Plan
Second Floor Plan

The Grand Pinklao Clubhouse / Office AT Section 1
Section 1
The Grand Pinklao Clubhouse / Office AT Section 2
Section 2
The Grand Pinklao Clubhouse / Office AT Exploded Axonometric
Exploded Axonometric

The Grand Pinklao Clubhouse / Office AT Diagram
Diagram
The Grand Pinklao Clubhouse / Office AT Diagram
Diagram
The Grand Pinklao Clubhouse / Office AT Diagram
Diagram

The Grand Pinklao Clubhouse / Office AT Diagram
Diagram
The Grand Pinklao Clubhouse / Office AT Diagram
Diagram
The Grand Pinklao Clubhouse / Office AT Diagram
Diagram


* Location to be used only as a reference. It could indicate city/country but not exact address.
Cite: "The Grand Pinklao Clubhouse / Office AT" 04 Mar 2014. ArchDaily. Accessed 05 Mar 2014. <http://www.archdaily.com/?p=482190>
