Flashback: Caltrans District 7 Headquarters / Morphosis

© Roland Halbe

Architects: MorphosisThom Mayne
Location: 100 South Main St., Los Angeles, California, United States
Project Team: Morphosis Team
Client: State of California, Department of General Services
Construction Years:  2002-2004
Building Area: 1,200,000 gross sq ft
Photographs: Liao Yusheng, Roland Halbe

© Liao Yusheng

Covering an entire block of downtown Los Angeles, the Caltrans District 7 Headquarters was the first building in California to be commissioned under the Design Excellence Program. Two distinguishable masses create an L-shaped plan which opens the architecture to the street, allowing for an accessible and public plaza. The larger of the two volumes rises 13 stories and is set back 155 feet from Main Street, while the smaller four story volume elegantly extends from its counterpart.

© Liao Yusheng

A striking quality that distinguishes Morphosis architecture is the mechanical nature of the skins, both in their aesthetics and in their function. The intelligent skin reacts to its environment in striking ways as it opens and closes depending on temperature and sunlight conditions. This creates a constantly shifting facade that is closed and therefore more private during the light of the day and becomes open and transparent during the night.

© Liao Yusheng

Photovoltaic cells cover the entire southern facade of the Caltrans building which acts to shield the facade from direct sunlight during peak hours all the while generating 5% of the building’s energy. A distinct skin system covers the facade bordering Main Street, where perforated aluminum panels cover a double skin layer of glass. The layer of panels continues over the courtyard, establishing a canopy and creating a transition space where building meets plaza.

Another green initiative taken by Morphosis in the Caltrans District 7 Headquarters is the skip-stop elevators which conserve energy while speeding up vertical circulation. A main motive in this circulation scheme was to increase intermediate gathering spaces for employees, and to encourage employees to take the stairs.

© Liao Yusheng

A graphic sign marks the building as 100 South Main Street where layers of opacity and transparency as well as 2D and 3D typography interplay to designate the space to the public. The public spaces are located on ground level and include an exhibition gallery, a large public art piece, retail stores and a cafeteria.

© Liao Yusheng

Artist Keith Sonnier is credited for his addition to the outdoor lobby, creating a light installation titled Motordom. Using a half-mile of argon and neon tubes in red and blue, the carefully arranged horizontal tubes are reminiscent of the streaks of headlights on California freeways. This is very fitting for the California Transportation Building, and similar ideas of movement become apparent through various cantilevers and extrusions.

© Liao Yusheng

The Caltrans 7 building is recognizable to individuals outside of the realm of architecture, as the design and construction process was documented over four episodes of Modern Marvels on the History Channel. This broadened the range of architectural knowledge about the project, as it presented the unique challenges of constructing the large building. It is also known for it’s importance in the work of Thom Mayne, who was awarded the 2005 Pritzker Prize with the help of this innovative project.

Caltrans_District_7_Headquarters_LA_Morphosis_main © Roland Halbe
© Roland Halbe
caltra11 © Liao Yusheng
© Liao Yusheng
caltra18 © Liao Yusheng
© Liao Yusheng

caltra28 © Liao Yusheng
© Liao Yusheng
caltra29 © Liao Yusheng
© Liao Yusheng

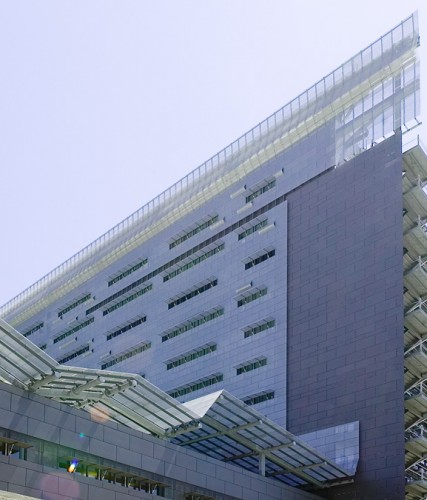

caltra7 © Liao Yusheng
© Liao Yusheng

caltra6 © Liao Yusheng
© Liao Yusheng
caltra9 © Liao Yusheng
© Liao Yusheng
caltra2 © Liao Yusheng
© Liao Yusheng

caltra24 © Liao Yusheng
© Liao Yusheng
caltrans1 © Liao Yusheng
© Liao Yusheng
caltra27 © Liao Yusheng
© Liao Yusheng

caltra26 © Liao Yusheng
© Liao Yusheng
caltra25 © Liao Yusheng
© Liao Yusheng
caltra23 © Liao Yusheng
© Liao Yusheng

caltra22 © Liao Yusheng
© Liao Yusheng
caltra21 © Liao Yusheng
© Liao Yusheng
caltra20 © Liao Yusheng
© Liao Yusheng

caltra19 © Liao Yusheng
© Liao Yusheng
caltra16 © Liao Yusheng
© Liao Yusheng
caltra15 © Liao Yusheng
© Liao Yusheng

caltra14 © Liao Yusheng
© Liao Yusheng
caltra13 © Liao Yusheng
© Liao Yusheng
caltra12 © Liao Yusheng
© Liao Yusheng

caltra10 © Liao Yusheng
© Liao Yusheng
caltra8 © Liao Yusheng
© Liao Yusheng
caltra5 © Liao Yusheng
© Liao Yusheng

caltra4 © Liao Yusheng
© Liao Yusheng
caltra3 © Liao Yusheng
© Liao Yusheng
caltra1 © Liao Yusheng
© Liao Yusheng

Drawing-Elevation-2 Courtesy of Morphosis
Courtesy of Morphosis
Drawing-Elevation-1 Courtesy of Morphosis
Courtesy of Morphosis
Drawing-Elevation Courtesy of Morphosis
Courtesy of Morphosis

Drawing-Section Courtesy of Morphosis
Courtesy of Morphosis
Drawing-Plan-1 Courtesy of Morphosis
Courtesy of Morphosis
Drawing-Plan-3 Courtesy of Morphosis
Courtesy of Morphosis

Drawing-Plan-2 Courtesy of Morphosis
Courtesy of Morphosis
Drawing-Plan Courtesy of Morphosis
Courtesy of Morphosis

Cite: Sveiven, Megan. "Flashback: Caltrans District 7 Headquarters / Morphosis" 15 Feb 2012. ArchDaily. Accessed 04 Jan 2014. <http://www.archdaily.com/?p=206947>
